Transducers

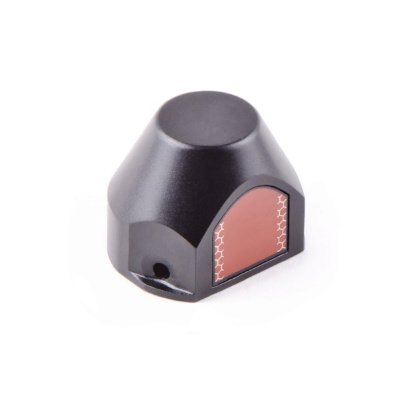

EMT40001
Standard EMA transducer for the EM4000 thickness gauge
Devices: EM4000.
Standard EMA transducer for the EM4000 thickness gauge
Devices: EM4000.
| Type of excited wave | Transverse wave with radial polarization |
| Range of operating frequency | 1…10 MHz |
| Aperture diameter | 12 mm |
| Dimensions | 43 х 34 х 34 mm |

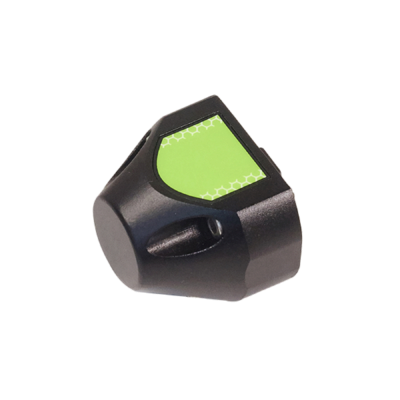

EMT50005P
EMA transducer with pulsed electromagnet
Devices: EM5000.
EMA transducer with pulsed electromagnet
Devices: EM5000.
| Type of excited wave | Transverse wave with radial polarization |
| Range of operating frequency | 1…10 MHz |
| Aperture diameter | 12 mm |
| Dimensions | 43 х 34 х 34 mm |

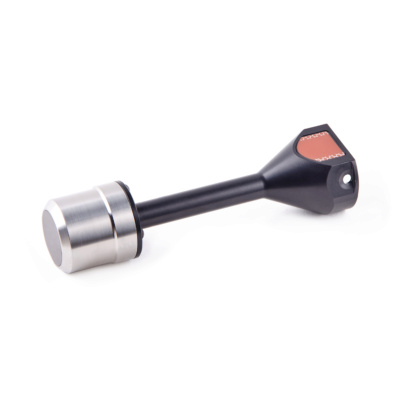

EMT40004T
High temperature EMA transducer for operation with objects heated up to 750 °C
Devices: EM4000.
High temperature EMA transducer for operation with objects heated up to 750 °C
Devices: EM4000.
| Type of excited wave | Transverse wave with radial polarization |
| Range of operating frequency | 1…10 MHz |
| Aperture diameter | 15 mm |
| Dimensions | 43 х 40 х 150 mm |

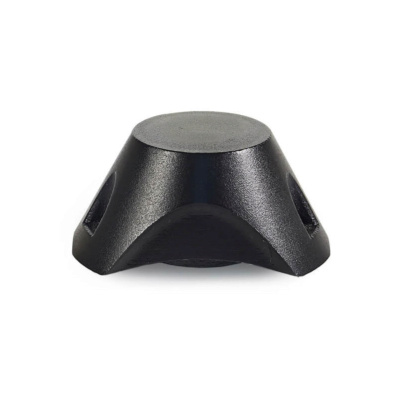

EMT22101
Standard EMA transducer for the EM2210 thickness gauge
Devices: EM2210.
Standard EMA transducer for the EM2210 thickness gauge
Devices: EM2210.
| Type of excited wave | Transverse wave with radial polarization |
| Range of operating frequency | 1…10 MHz |
| Aperture diameter | 12 mm |
| Dimensions | 39 x 31 x 20 mm |
EMT22102
EMA transducer
Devices: EM2210.
EMA transducer
Devices: EM2210.
| Type of excited wave | Transverse wave with linear polarization |
| Range of operating frequency | 1…10 MHz |
| Aperture diameter | 2 x 12 mm |
| Dimensions | 39 x 31 x 20 mm |

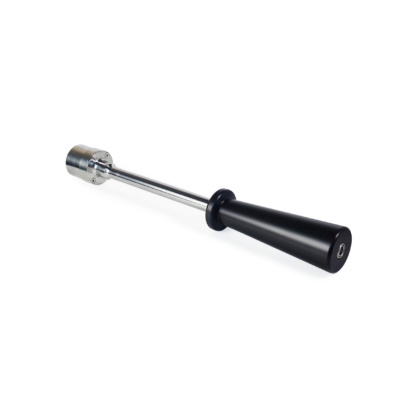

EMT14014T
High temperature EMA transducer for operation with objects heated up to 750 °C
Devices: EM1401, EM1401UT, EM1501.
High temperature EMA transducer for operation with objects heated up to 750 °C
Devices: EM1401, EM1401UT, EM1501.
| Type of excited wave | Transverse wave with radial polarization |
| Range of operating frequency | 1…10 MHz |
| Aperture diameter | 15 mm |
| Dimensions | 40 х 40 х 320 mm |
EMT15014T
Transducer with a pulsed electromagnet for operation with objects heated up to 750 °C
Devices: EM1501.
Transducer with a pulsed electromagnet for operation with objects heated up to 750 °C
Devices: EM1501.
| Type of excited wave | Transverse wave with radial polarization |
| Range of operating frequency | 1…10 MHz |
| Aperture diameter | 15 mm |
| Dimensions | 40 х 40 х 320 mm |

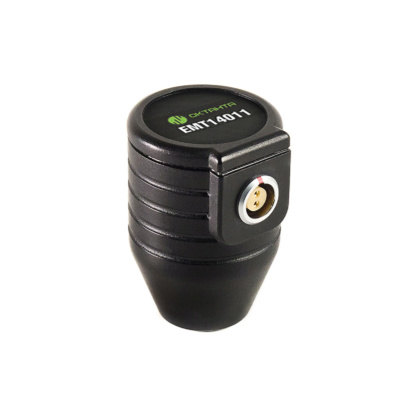

EMT14011
Transducer for operation with a gap up to 3 mm
Devices: EM2210, EM1401, EM1401UT, EM1501.
Transducer for operation with a gap up to 3 mm
Devices: EM2210, EM1401, EM1401UT, EM1501.
| Type of excited wave | Transverse wave with radial polarization |
| Range of operating frequency | 1…10 MHz |
| Aperture diameter | 6 mm |
| Dimensions | 30 x 42 mm |

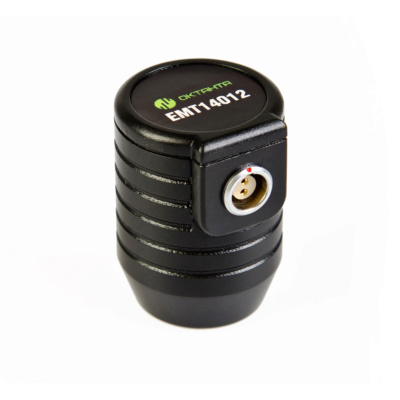

EMT14012
Transducer for operation with a gap up to 4 mm
Devices: EM2210, EM1401, EM1401UT, EM1501.
Transducer for operation with a gap up to 4 mm
Devices: EM2210, EM1401, EM1401UT, EM1501.
| Type of excited wave | Transverse wave with radial polarization |
| Range of operating frequency | 1…10 MHz |
| Aperture diameter | 12 mm |
| Dimensions | 30 x 44 mm |
EMT14012L
Transducer for operation with a gap up to 4 mm
Devices: EM2210, EM1401, EM1401UT, EM1501.
Transducer for operation with a gap up to 4 mm
Devices: EM2210, EM1401, EM1401UT, EM1501.
| Type of excited wave | Transverse wave with linear polarization |
| Range of operating frequency | 1…10 MHz |
| Aperture diameter | 3 x 12 mm |
| Dimensions | 30 x 44 mm |

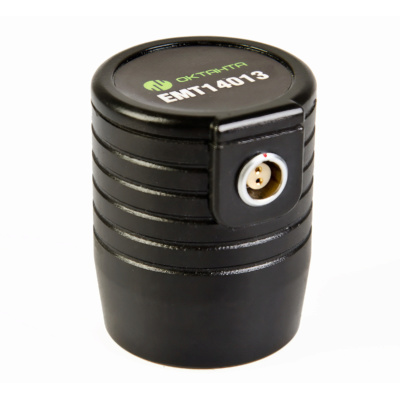

EMT14013
Transducer for operation with a gap up to 7 mm
Devices: EM2210, EM1401, EM1401UT, EM1501.
Transducer for operation with a gap up to 7 mm
Devices: EM2210, EM1401, EM1401UT, EM1501.
| Type of excited wave | Transverse wave with radial polarization |
| Range of operating frequency | 1…10 MHz |
| Aperture diameter | 27 mm |
| Dimensions | 40 x 50 mm |
EMT14013L
Transducer for operation with a gap up to 7 mm
Devices: EM2210, EM1401, EM1401UT, EM1501.
Transducer for operation with a gap up to 7 mm
Devices: EM2210, EM1401, EM1401UT, EM1501.
| Type of excited wave | Transverse wave with linear polarization |
| Range of operating frequency | 1…10 MHz |
| Aperture diameter | 4 x 27 mm |
| Dimensions | 40 x 50 mm |
EMT15015P
EMA transducer with a pulsed electromagnet
Devices: EM1501.
EMA transducer with a pulsed electromagnet
Devices: EM1501.
| Type of excited wave | Transverse wave with radial polarization |
| Range of operating frequency | 1…10 MHz |
| Aperture diameter | 12 mm |
| Dimensions | 30 x 44 mm |

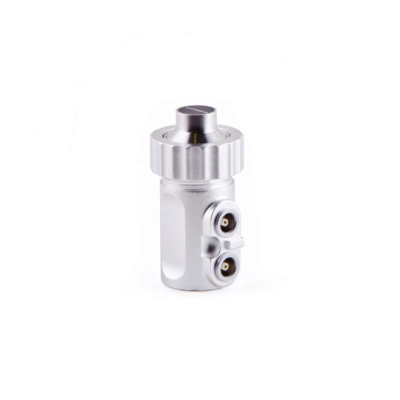

EDC5P10FS15
Piezoelectric transducer 5 MHz, 10 mm
Devices: EM1401UT, EM1501.
Piezoelectric transducer 5 MHz, 10 mm
Devices: EM1401UT, EM1501.
| Type of excited wave | Longitudinal |
| Type of transducer | Radial dyal-mode |
| Operating frequency | 5 MHz |
| Dimensions of crystal | 10 mm |

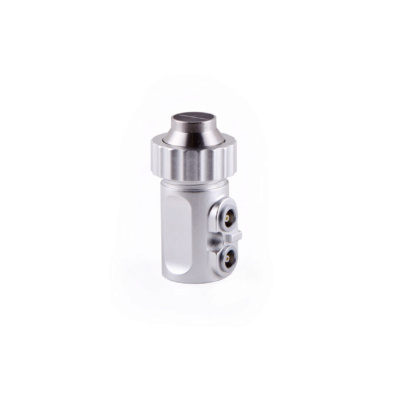

EDC5P7.2FS10
Piezoelectric transducer 5 MHz, 7.2 mm
Devices: EM1401UT, EM1501.
Piezoelectric transducer 5 MHz, 7.2 mm
Devices: EM1401UT, EM1501.
| Type of excited wave | Longitudinal |
| Type of transducer | Radial dyal-mode |
| Operating frequency | 5 MHz |
| Dimensions of crystal | 7.2 mm |

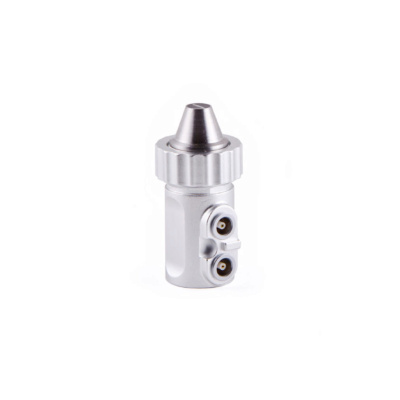

EDC10P5F3
Piezoelectric transducer 10 MHz, 5 mm
Devices: EM1401UT, EM1501.
Piezoelectric transducer 10 MHz, 5 mm
Devices: EM1401UT, EM1501.
| Type of excited wave | Longitudinal |
| Type of transducer | Radial dyal-mode |
| Operating frequency | 10 MHz |
| Dimensions of crystal | 5 mm |

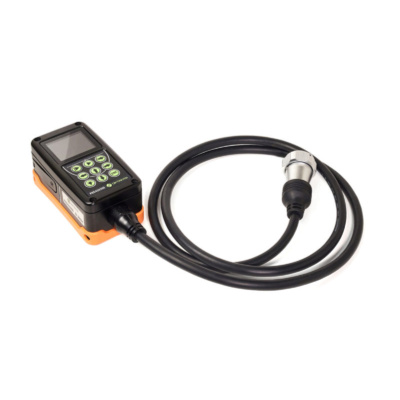

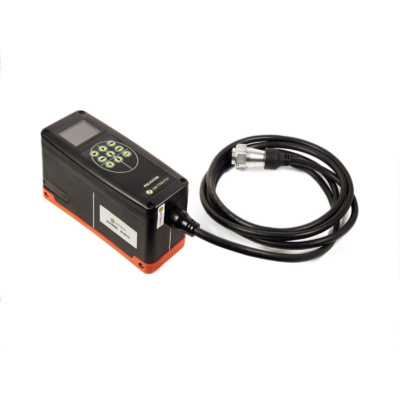

PEC433204
Probe for the PE4332 pulsed eddy current flaw detector
Devices: PE4332.
Probe for the PE4332 pulsed eddy current flaw detector
Devices: PE4332.
PEC433205
Probe for the PE4332 pulsed eddy current flaw detector
Devices: PE4332.
Probe for the PE4332 pulsed eddy current flaw detector
Devices: PE4332.
PEC433206
Probe for the PE4332 pulsed eddy current flaw detector
Devices: PE4332.
Probe for the PE4332 pulsed eddy current flaw detector
Devices: PE4332.

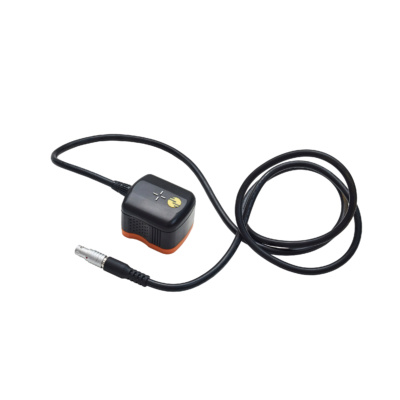

PEC143702
Insulation 0…30 mm, steel thickness 0…12 mm
Devices: PE1437.
Insulation 0…30 mm, steel thickness 0…12 mm
Devices: PE1437.
PEC143703
Insulation 0…100 mm, steel thickness 0…18 mm
Devices: PE1437.
Insulation 0…100 mm, steel thickness 0…18 mm
Devices: PE1437.
